MMSD914T1 200mA 100V SMT Switching Diode ON Semiconductor®

MMSD914T1 200mA 100V SMT Switching Diode ON Semiconductor®

Manufacturer: ON Semiconductor®
Part Number: MMSD914T1
Capacitance (uF): .000004
Amps: .2
Voltage: 100
Watts: 0.225
Package: SOD-123
Mounting: Surface Mount
Number Leads/Terminals: 2
Material: Plastic
Color: Black
Temperature: -55 to 150°C
Shape: Rectangle
Termination Method: Solder

Price: $0.10
3000 available for immediate delivery
Code: DI134PE02
Volume Pricing
Quantity Price Each
1-9$0.10
10-99$0.07
100+$0.04
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Surface Mount Switching Diodes

Features:
- High Breakdown Voltage
- Fast Speed Switching Time

Maximum Ratings:
Continuous Reverse Voltage: 100V
Peak Forward Current: 200mA
Peak Forward Surge Current: 500mA
Non-repetitive Peak Forward Surge Current:
- Pulse Width=1 sec.: 1.0A
- Pulse Width=1 micro sec.: 2.0A

Thermal Characteristics:
Total Device Dissipation FR-5 Board (TA=25°C): 425mW
Derate above 25°C: 3.4mW/°C
Thermal Resistance,Junction-to-Ambient: 290°/W
Junction and Storage Temperature Range: -55 to 150°C

Electrical Characteristics (TA=25°C unless otherwise noted):
Reverse Breakdown Voltage (IBR = 100 uA): 100V min.
Reverse Voltage Leakage Current:
- VR = 20 Vdc: 25nA max.
- VR = 75 Vdc: 5.0uA max.
Forward Voltage (IF = 10 mAdc): 1000mV max.
Diode Capacitance (VR = 0 Vdc, f = 1.0 MHz): 4.0pF max.
Reverse Recovery Time (IF = IR = 10 mAdc): 4.0 ns max.

Full Datasheet: MMSD914T1

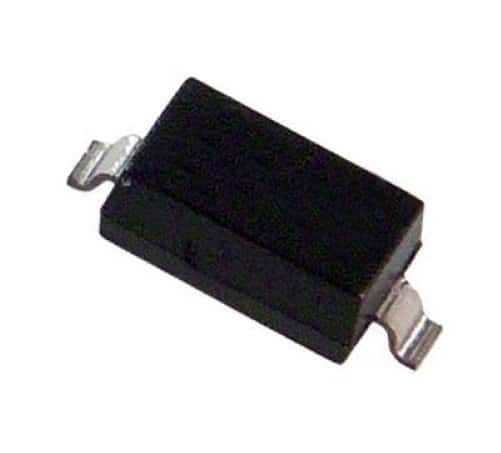

Stock photo is for reference only and may not be the exact part number described
