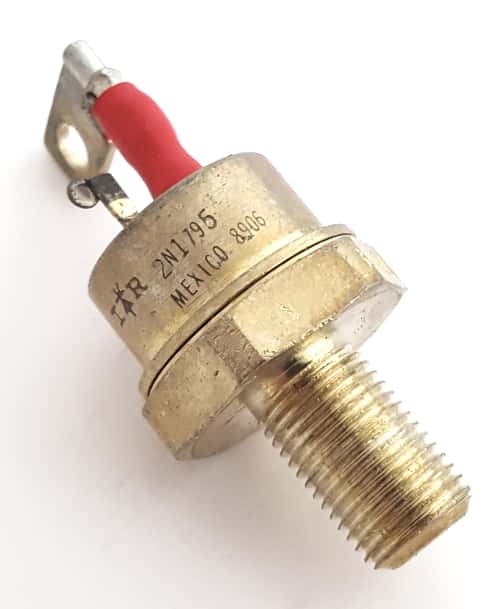

2N1795 110A 200V Phase Control Thyristor International Rectifier

2N1795 110A 200V Phase Control Thyristor International Rectifier

Manufacturer: International Rectifier
Part Number: 2N1795
Amps: 110A
Voltage: 200V
Package: TO-208AD
Lead/Terminal Type: Flag
Number Leads/Terminals: 1

Price: $70.00
36 available for immediate delivery
Code: DI148PE06
Weight: 2.80oz ONZ
