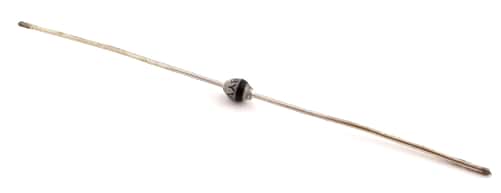

BYV27-100 2A 2Amp 100V Controlled Avalanche Rectifier Diode Philips®

BYV27-100 2A 2Amp 100V Controlled Avalanche Rectifier Diode Philips®

Manufacturer: Philips®
Part Number: BYV27-100
Amps: 2
Voltage: 100
Package: SOD-57
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Silver
Temperature: -65 to 175°C
Termination Method: Solder
Size (mm): 4.57 x 3.81

Price: $0.33
649 available for immediate delivery
Code: DI205PD
Weight: 0.03oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.33
10-99$0.31
100+$0.29
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Ultra Fast Axial Avalanche Rectifier Diodes

This SOD57 package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched. This rugged glass package uses high temperature alloyed construction.

Features:
Glass passivated
High maximum operating temperature
Low leakage current
Excellent stability
Guaranteed avalanche energy absorption capability

Repetitive Peak Reverse Voltage: 100V
Max. Continuous Reverse Voltage: 100V
Max. Average Forward Current: 2A
(Ttp=80°C; Lead length=10mm; averaged over any 20ms period)
Max. Repetitive Peak Forward Current(Ttp=85°C): 20A
Max. Non Repetitive Peak Forward Current: 50A
(t=10ms half sine wave; Tj max prior to surge; VR=Vrrm max)
Max. Junction Temperature: 175°C
Max. Forward Voltage: 0.78V
(IF=2A; Tj=Tj max)
Min. Reverse Avalanche Breakdown Voltage (IR=0.1mA): 55V
Max. Reverse Current @ 100V: 5 microamps
Max. Reverse Recovery Time: 25ns
(when switched from IF=0.5A to IR=1A; measured at IR=0.25A)
Diode Capacitance(f=1MHz: VR=0): 100pF

Manufactured by: Philips®
Part number: BYV27-100

Full datasheet: BYV27-100
