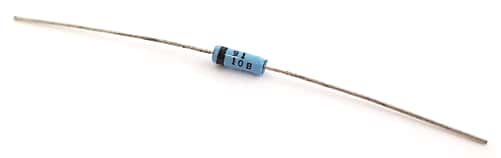

1N823 JAN1N823 Zener Voltage Reference Diode Military Siemens®

1N823 JAN1N823 Zener Voltage Reference Diode Military Siemens®

Manufacturer: Siemens®
Part Number: 1N823
Voltage: 5.9 - 6.5
Watts: .5
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Blue
Temperature: -65 to 175°C
Military Spec: Yes
Termination Method: Solder

Price: $2.90
1049 available for immediate delivery
Code: DI221PD
Weight: 0.02oz ONZ
