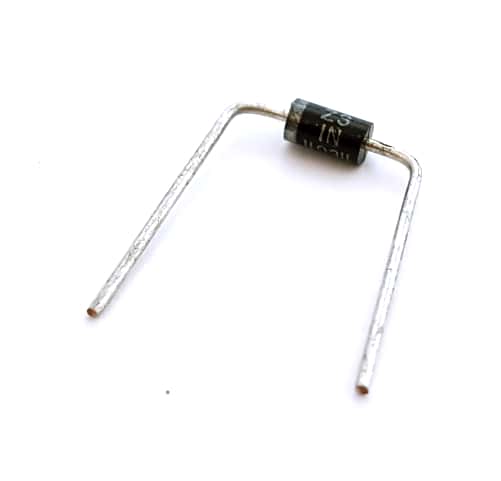

1N4934 1A 1 Amp 100V Rectifier Diode Fast Recovery

1N4934 1A 1 Amp 100V Rectifier Diode Fast Recovery

Manufacturer: Motorola®
Part Number: 1N4934
Amps: 1
Voltage: 100
Package: DO-41
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Black
Temperature: 150°C
Shape: Round (Cylindrical)
Termination Method: Solder

Price: $0.10
3853 available for immediate delivery
Code: DI241PD
Volume Pricing
Quantity Price Each
1-9$0.10
10-99$0.08
100+$0.05
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$36.95
$45.01
$90.00
$45.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information


Fast Recovery Rectifier Diodes
DO-41

Case: Molded Epoxy
Leads:
-Factory Trim Formed Leads
-Readily Solderable
-Max. Temp. for Soldering: 220°C, 1/16" form case, 10 sec.
Finish: Corrosive Resistant External Surfaces
Polarity: Cathode Indicated by Band

Max. Ratings:
Peak Repetitive Reverse Voltage: 100V
Working Peak Reverse Voltage: 100V
DC Blocking Voltage: 100V
Non-Repetitive Peak Reverse Voltage: 150V
RMS Reverse Voltage: 70V
Average Rectified Forward Current: 1.0A
(Single phase, resistive load, TA=75°C)
Non-Repetitive Peak Surge Current: 30A
(Surge applied at rated load conditions)
Operating Junction & Storage Temperature: -65 to 150°C

Electrical Characteristics:
Instantaneous Forward Voltage: 1.0V typ. ; 1.2V max.
(IF = 3.14A, TJ = 150°C)
Forward Voltage: 1.05V typ. ; 1.2V max.
(IF = 1.0A, TA = 25°C)
Reverse Current(Rated DC Voltage):
1uA @ 25°C typ. ; 5uA @ 25°C max.
50uA @ 100°C typ. ; 100uA @ 100°C max.
Reverse Recovery Time:
IF = 1A to VR = 30VDC: 150ns typ ; 200ns max.
IFM = 15A, di/dt = 10A/us; 175ns typ. ; 300ns max.
Reverse Recovery Current:
IF=1A to VR = 30VDC: 1A typ ; 2A max.

Manufactured by: Motorola
Part number: 1N4934

Full datasheet: 1N4934
