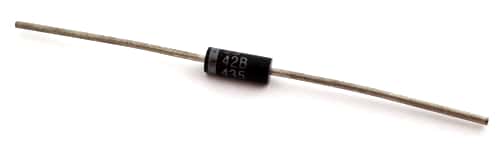

1N5342B .5W 6.8V Silicon Zener Diode Surmetic 40 Motorola®

1N5342B .5W 6.8V Silicon Zener Diode Surmetic 40 Motorola®

Manufacturer: Motorola® (On Semiconductor®)
Part Number: 1N5342B
Amps: .7
Voltage: 6.8
Watts: .5
Tolerance (%): 5
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Black
Temperature: -65 to 200°C
Shape: Round (Cylindrical)
Termination Method: Solder
Size (mm): 8.89 x 3.68

Price: $0.25
309 available for immediate delivery
