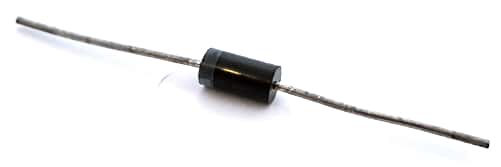

1N6288A 1.5KE51A 20.4A 3.5V Transient Voltage Suppressor Transzorb™

1N6288A 1.5KE51A 20.4A 3.5V Transient Voltage Suppressor Transzorb™

Manufacturer: General Semiconductor® (Vishay®)
Part Number: 1N6288A
Amps: 20.4
Voltage: 3.5
Watts: 6.5
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Material: Molded Epoxy
Color: Black
Temperature: -55 to 175°C
Shape: Round (Cylindrical)
Termination Method: Solder
Size (mm): 9.5 x 3.5

Price: $0.25
189 available for immediate delivery
Code: DI264PD
