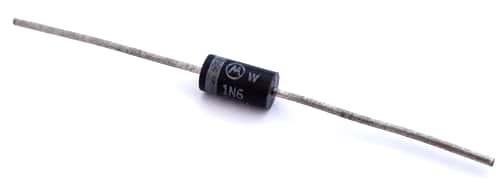

1N6291A 1.5KE68A 1500W 58.1V TVS Zener Diode Motorola®

1N6291A 1.5KE68A 1500W 58.1V TVS Zener Diode Motorola®

Manufacturer: Motorola®
Part Number: 1.5KE68A
Amps: 200
Voltage: 58.1
Watts: 1500
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Black
Temperature: 175°C
Shape: Round (Cylindrical)
Termination Method: Solder

Price: $0.20
76 available for immediate delivery
Code: DI265PD
