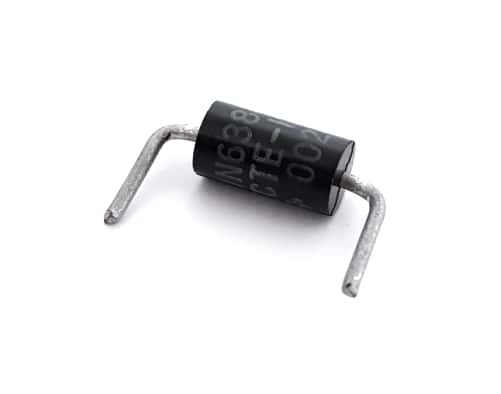

1N6384 ICTE-12C 200A 12V Transient Voltage Suppressor Transzorb

1N6384 ICTE-12C 200A 12V Transient Voltage Suppressor Transzorb

Manufacturer: General Semiconductor® (Vishay®)
Part Number: 1N6384
Amps: 200
Voltage: 12
Watts: 1500
Package: 1.5KE
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Black
Temperature: 175°C
Shape: Round (Cylindrical)
Termination Method: Solder

Price: $2.00
945 available for immediate delivery
Code: DI268PD
Volume Pricing
Quantity Price Each
1-9$2.00
10-99$1.90
100+$1.75

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Axial Transient Voltage Suppression Diodes
Bidirectional

Case: Molded epoxy over passivated junction
Flammability Rating: UL 94 V-O
Terminals: Factory Cut and Formed, Matte tin-plated leads
Polarity: Color band denotes cathode end

Max. Ratings:
Peak Pulse Power Dissipation: 1500W
Peak Pulse Current: 160A
(10/1000us waveform)
Power Dissipation: 6.5W
(On infinite heatsink @ TL = 75°C)
Max. Instantaneous Forward Current: 3.5V @ 100A
Operating Junction & Storage Temperature: -55 to 175°C

Electrical Specs: (@ 25°C unless otherwise noted)
Stand-off Voltage: 12V
Min. Breakdown Voltage: 14.1V @ 1mA
Max. Reverse Leakage: 2.0uA @ 12V
Max. Clamping Voltage: 16.7V @ 1A ; 17.1V @ 10A

Features:
Glass passivated chip junction
Excellent clamping capability
Very fast response time
Low incremental surge resistance
Solder dip 260°C, 40s

Applications: For use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial and telecommunication.

Manufactured by: General Semiconductor® (Vishay®)
Part number: ICTE-12C
JEDEC Part Number: 1N6384

RoHS Compliant

Full datasheet: 1N6384
