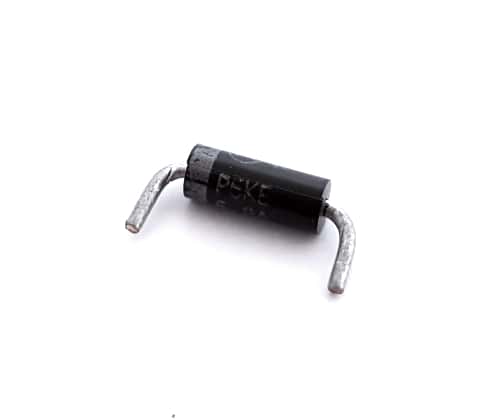

P6KE6.8A 100A 100 Amps 5.8V Surmetic Zener TVS

P6KE6.8A 100A 100 Amps 5.8V Surmetic Zener TVS

Manufacturer: Motorola (On Semiconductor)
Part Number: P6KE6.8A
Amps: 100
Voltage: 5.8
Watts: 600
Lead/Terminal Type: Axial
Number Leads/Terminals: 2

Price: $0.40
3000 available for immediate delivery
Code: DI269PD
Volume Pricing
Quantity Price Each
1-9$0.40
10-99$0.38
100+$0.35

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Axial Transient Voltage Suppression Surmetic Zener Diodes
Unidirectional

Case: Void-free, transfer-molded, thermosetting plastic
Finish: External surfaces are corrosion resistant
Leads: Factory Cut and Formed, Readily solderable
Polarity: Band indicates cathode end

Max. Ratings:
Peak Power Dissipation @ 25°C: 600W
Steady State Power Dissipation: 5W
(TL≤=75°C, Lead Length=3/8")
Derated above TL=75°C: 50mW/°C
Forward Surge Current @ TA=25°C: 100A
(Half-sine wave, PW=8.3ms, duty cycle=4 pulses per min. max.)
Operating & Storage Temperature: -55°C to 175°C

Electrical Specs:
Working Peak Reverse Voltage: 5.8V
Max. Reverse Leakage Current : 1000µA @ 5.8V
Breakdown Voltage @ 1mA: 6.45V min. ; 6.8V nom. ; 7.14V max.
Clamping Voltage: 10.5V @ 57A

Features:
Peak Power 600W @ 1ms
ESD Rating Class3(>16KV) per Human Body Model
Low Leakage
UL 497B for Isolated Loop Circuit Protection
Response Time: 1ns typ.

Applications:
Communication Systems
Numerical Controls
Process controls
Medical Equipment
Business Machines
Power Supplies

Manufactured by: Motorola® (ON Semiconductor®)
Part number: P6KE6.8A

Full datasheet: P6KE6.8A
