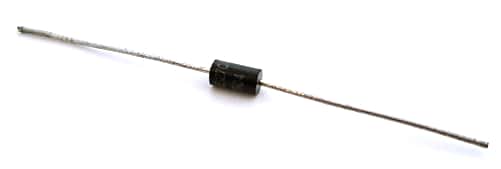

P6KE27CA 6.8A 100A 21.8V Transient Voltage Suppressor Transzorb

P6KE27CA 6.8A 100A 21.8V Transient Voltage Suppressor Transzorb

Manufacturer: General Instrument® (Vishay®)
Part Number: P6KE27CA
Amps: 100
Voltage: 21.8
Watts: 600
Package: DO-204AC
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Black
Temperature: 175°C
Shape: Round
Termination Method: Solder

Price: $0.35
212 available for immediate delivery
Code: DI275PD
Volume Pricing
Quantity Price Each
1-9$0.35
10-99$0.33
100+$0.30

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Axial Transient Voltage Suppression Diodes
Bidirectional

Case: DO-204AC, molded epoxy over passivated chip
Flammability Rating: UL 94V-0
Terminals: Matte tin-plated, solderable per J-STD-002B & JESD22-B102D

Max. Ratings: (TA=deg.C unless otherwise noted)
Peak Power Dissipation: 600W
(with a 10/1000 micro second waveform)
Peak Pulse Current: 15.3A
(with a 10/1000 microsecond waveform)
Power Dissipation: 1.5W
(on infinite heatsink at TL=75 deg.C)
Operating Junction & Storage Temperature: -55 deg.C to 175 deg. C

Electrical Specs: (TA=25 deg.C unless otherwise noted)
Breakdown Voltage @ 1mA: 24.3V min. ; 29.7V max.
Stand-Off Voltage: 21.8V
Max. Reverse Leakage: 1 microamp @ 21.8V
Max. Clamping Voltage: 15.3V @ 39.1A

Features:
Glass passivated chip junction
Excellent clamping capability
Very fast response time
Low incremental surge resistance
Solder dip 260deg.C, 40s.

Applications: For use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.

Manufactured by: General Instruments® (Vishay®)
Part number: P6KE27CA

Full datasheet: P6KE27CA
