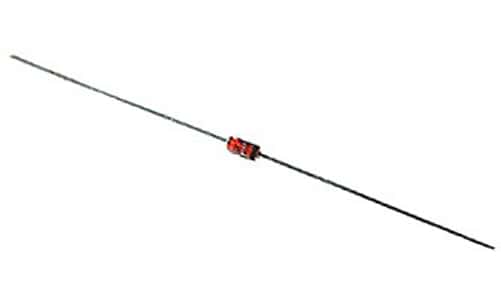

1N4747A 20V 1W 5% Zener Diode Glass Fairchild

1N4747A 20V 1W 5% Zener Diode Glass Fairchild

Manufacturer: Fairchild
Part Number: 1N4747A
Amps: .0125
Voltage: 20
Watts: 1
Ohms: 22
Tolerance (%): 5
Package: DO-41
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Material: Glass
Temperature: 200
RoHS Compliant: Yes
Termination Method: Solder

Price: $0.20
14763 available for immediate delivery
Code: DI338APP06
Weight: 0.10oz ONZ
