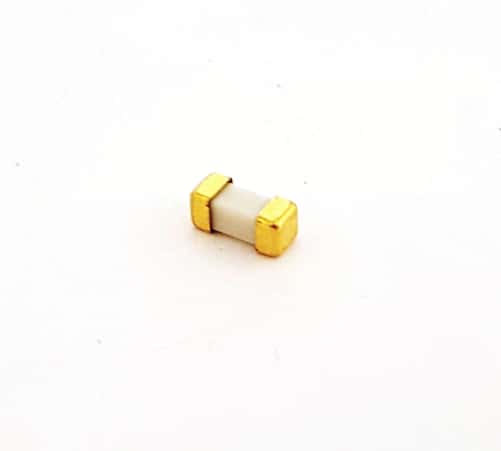

1.0A 125V Surface Mount Slow Blow Nano Fuse Littelfuse® 0452001.MRL

1.0A 125V Surface Mount Slow Blow Nano Fuse Littelfuse® 0452001.MRL

Manufacturer: Littelfuse®
Part Number: 0452001.MRL
Amps: 1
Voltage: 125
Voltage (Vac): 125
Ohms: 0.225
Mounting: Surface Mount
Lead/Terminal Type: Solder Pad
Number Leads/Terminals: 2
Material: Ceramic
Color: White
Temperature: -55 to 125°C
RoHS Compliant: Yes
Shape: Rectangle
Termination Method: Solder
Size (mm): 6.10 x 2.69

Price: $0.80
1040 available for immediate delivery
Code: F011BPT04
Weight: 0.01oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

SMT Slow Blow Nano Fuses
452 Series - Gold Plated Leads

Time lag fuses carry an overcurrent of a specified amount for a minimum time without opening. The current and time requirements are specified in the UL/CSA fuse standards.

Specifications:
Amp Rating: 1.0 A
Voltage: 125 V
Interrupt Rating:
- 50 A @ 125 VAC/VDC
- 300 A @ 32 VDC
- PSE: 100 A @ 100 VAC
Nominal Resistance Cold Ohms: 0.225
Nominal Melting I^2t A^2 Sec.: 1.98

Dimensions:
Length: 6.10mm (0.24")
Width: 2.69mm (0.106")
Height: 2.69mm (0.106")

Applications:
LCD/PDP TV
Power Supply
Cooling Fan System
Game Console
Automotive

Manufactured by: Littelfuse®
Part Number: 0452001.MRL

Full Datasheet: Littelfuse® 452 Series SMD Slo-Blo Fuse 1 Amp 125 VAC/DC
