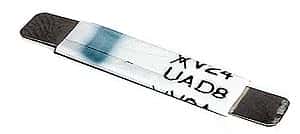

2.4A 16V Polyswitch Fuse Raychem VTP-240

2.4A 16V Polyswitch Fuse Raychem VTP-240

Manufacturer: Raychem
Part Number: VTP-240
Amps: 2.4
Voltage: 16
Watts: 1.7
Ohms: .026
Lead/Terminal Type: Strap
Number Leads/Terminals: 2
Material: Metal
Shape: Rectangle

Price: $0.60
1920 available for immediate delivery
Code: F043PE08
Volume Pricing
Quantity Price Each
1-9$0.60
10-99$0.55
100+$0.50
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

PolySwitch® Fuses

Maximum Electrical Ratings:
Operating Voltage: 16V
Interrupt Current: 100A

Performance Ratings:
I Hold @ 25°C: 2.4A
Current Trip Limits:
- @ 0°C: 3.1A Hold ; 7.9A Trip
- @ 25°C: 2.4A Hold ; 5.9A Trip
- @ 60°C: 1.2A Hold ; 3.2A Trip
Time to Trip @ 25°C, 12A: 5.0 sec. max.
Reference Resistance @ 25°C: 0.014Ω min. ; 0.026Ω max.
1 Hour Post Trip Resistance @ 25°C: 0.014Ω min. ; 0.052Ω max.
Tripped State Power Dissipation @ 25°C, 16V: 1.7W max.

Dimensions:
Length: 23.8mm - 26.2mm (0.94" - 1.03")
Width: 4.9mm - 5.3mm (0.19" - 0.21")
Thickness: 0.8mm max. (0.03")

Manufactured by: Raychem (Tyco)
Part Number: VTP-240

Full Datasheet: VTP-240
