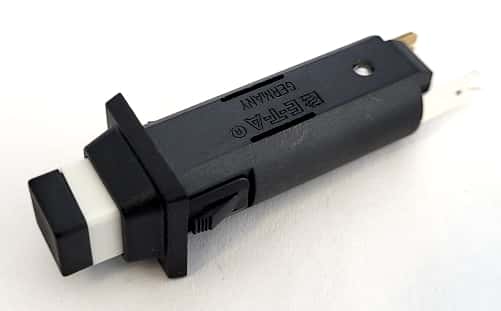

1110-F212-P1M1-5A 5A 50VDC 250VAC Circuit Breaker Pushbutton E-T-A®

1110-F212-P1M1-5A 5A 50VDC 250VAC Circuit Breaker Pushbutton E-T-A®

Manufacturer: E-T-A®
Part Number: 1110-F212-P1M1-5A
Amps: 5
Voltage: 50
Voltage (Vac): 250
Ohms: .05
Mounting: Panel Mount
Lead/Terminal Type: Blade
Number Leads/Terminals: 2
Color: Black
Temperature: -20 to 60°C
RoHS Compliant: Yes
Termination Method: Quick Connect
Size (mm): 38.5 x 15.6 x 13.2

Price: $20.00
30 available for immediate delivery
Code: F141APV03
Weight: 0.46oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Panel Mount Thermal Circuit Breakers
Made in Germany

Features:
- Single Pole
- Medium Delay
- 0.25 Quick Connect Terminals
- Push-button Actuator (Push-Push)
- IP64 Rated

Current Rating: 5.0A
Voltage Rating: 50.0VDC
Voltage Rating: 250VAC
Internal Resistance: 0.05Ω
Operating Temperature: -20 to 60°C

Dimensions
Bezel : 19.0mm x 19.0mm x 2.4mm
Body (below bezel): 38.5mm X 15.6mm x 13.2mm
Panel Thickness: 1.8mm to 3.0mm

Manufactured by: E-T-A®
Part Number: 1110-F212-P1M1-5A

Full Datasheet: E-T-A® 1110 Series Snap In Circuit Breakers 5A

RoHS Compliant
