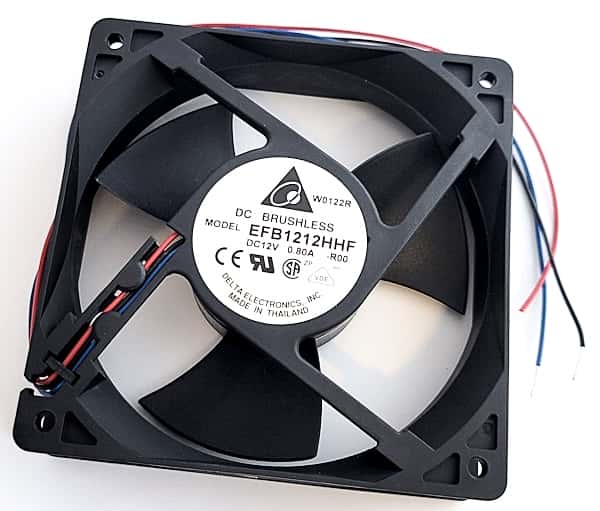

12V .08A 3 Blade DC Brushless Cooling Fan Delta® EFB1212HHF

12V .08A 3 Blade DC Brushless Cooling Fan Delta® EFB1212HHF

Manufacturer: Delta®
Part Number: EFB1212HHF
Amps: .80
Voltage: 12
Watts: 6.12
Lead/Terminal Type: Wire
Number Leads/Terminals: 3
Material: Plastic
Color: Black
Shape: Square
Size (mm): 120 x 120 x 38

Price: $15.00
84 available for immediate delivery
Code: FN080APW08
Weight: 8.50oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

DC Brushless Fans
3 Blades
Ball Bearing

Rated Voltage: 12.0V
Operating Voltage Range: 4.0-13.8V
Rated Current: 0.80A
Rated Input: 6.12W
Speed: 3800RPM
Maximum Air Volume:120.07CFM
Maximum Static Pressure: 10.9mm-H2O
Noise Level: 50.5dB
Operating Temperature Range: -5 to 60°C

Dimensions
Width: 120mm (4.72")
Height: 120mm (4.72")
Thickness: 32.0mm (1.26")
Distance between mounting holes: 105mm (4.13")
Lead Wire:
- Gauge: 24AWG
- Length: 305mm (12")

Manufactured by: Delta®
Part Number: EFB1212HHF

For reference only, we are providing a datasheet for this part number, please note that our part number's current rating differs from the info printed. West Florida Components assumes no liability for this information.

Full Datasheet: Delta® EFB Series 120mm Fan 12V 3,800 RPM
