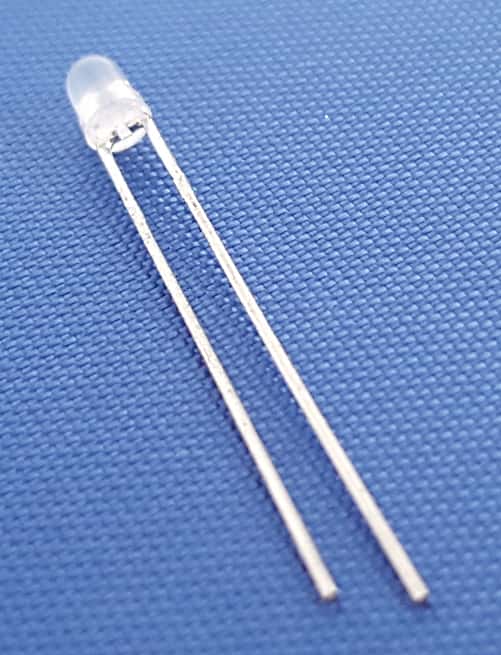

Bicolor Green Red 3mm T1 LEDs L-937EGW Kingbright®

Bicolor Green Red 3mm T1 LEDs L-937EGW Kingbright®

Manufacturer: Kingbright®
Part Number: L-937EGW
Package: T1
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 2
Color: Green / Red
Size (mm): 3

Price: $0.22
2733 available for immediate delivery
Code: G113PE06
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.22
10-99$0.20
100-999$0.18
1000+$0.16
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

DESCRIPTION / ADDITIONAL INFORMATION

Bicolor LED Lamps
Colors: Red / Green
Lens: White Diffused
Size: T-1 (3mm)

Features:
- Uniform Light Output
- Low Power Consumption
- I.C. Compatible
- Long Life - Solid State Durability

Typical Electrical / Optical Characteristics (IF =20mA ; TA=25°C unless otherwise noted):

Red:
Luminous Intensity: 8mcd min. ; 20mcd
Viewing Angle: 60°
Peak Wavelength: 627nm
Dominate Wavelength: 625nm
Spectral Line Halfwidth: 45nm
Capacitance (VF=0V;f=1MHz): 15pF
Forward Voltage: 2.0V
Reverse Current (VR=5V): 10uA max.

Green:
Luminous Intensity: 8mcd min. ; 20mcd
Viewing Angle: 60°
Peak Wavelength: 565nm
Dominate Wavelength: 568nm
Spectral Line Halfwidth: 30nm
Capacitance (VF=0V;f=1MHz): 15pF
Forward Voltage: 2.2V
Reverse Current (VR=5V): 10uA max.

Manufactured by: Kingbright☺®
Part Number: L-937EGW

Full Datasheet: L-937EGW
