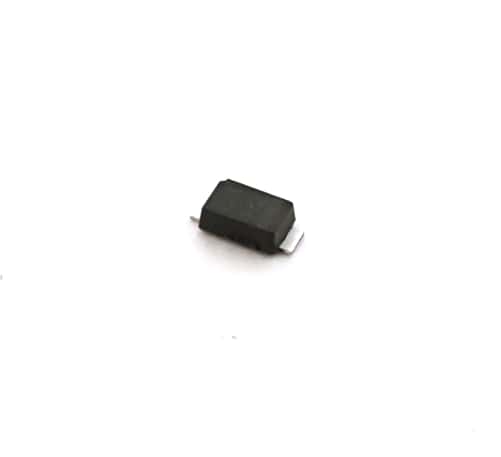

BZD27C200P-GS08 5mA 200V Surface Mount Zener Diode Vishay

BZD27C200P-GS08 5mA 200V Surface Mount Zener Diode Vishay

Manufacturer: Vishay
Part Number: BZD27C200P-GS08
Amps: .5
Voltage: 200
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 2
RoHS Compliant: Yes

Price: $0.15
3000 available for immediate delivery
Code: G138PE06
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.15
10-99$0.13
100-999$0.11
1000+$0.08
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$36.95
$45.01
$90.00
$45.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

SMT Zener Diodes

Features:
- Low profile surface-mount package
- Zener and surge current specification
- Low leakage current
- Excellent stability

Electrical Characteristics when Used as Voltage Regulator Diode
- (TJ=25°C unless otherwise noted):
Working Voltage @ 5mA: 188V min. ; 212V max.
Differential Resistance: 200Ω typ.; 500Ω max.
Temperature Coefficient: 0.09%/°C min. ; 0.13%/°C max.
Reverse Current @ Reverse Voltage: 1uA max. @ 150V

Electrical Characteristics when Used as Protection Diode:
- (TJ=25°C unless otherwise noted):
Reverse Breakdown Voltage @ 5mA: 188V min.
Temperature Coefficient: 0.09%/°C min. ; 0.13%/°C max.
Clamping Voltage @ 0.39A: 254V max.
Reverse Current @ Stand-Off Voltage @ 160V: 5uA

Manufactured by: Vishay
Part Number: BZD27C200P-GS08

Full Datasheet: BZD27C200P-GS08

RoHS Compliant
