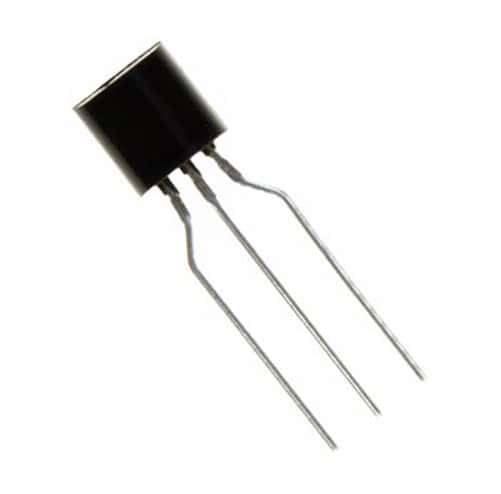

PN2222 600mA 30V General Purpose NPN Transistor Rohm®

PN2222 600mA 30V General Purpose NPN Transistor Rohm®

Manufacturer: Rohm®
Part Number: PN2222
Amps: .6
Voltage: 40
Watts: .625
Package: TO-92
Mounting: Through Hole
Lead/Terminal Type: Pre Formed
Number Leads/Terminals: 3
Color: Black
Temperature: 150°C
Termination Method: Solder

Price: $0.20
2832 available for immediate delivery
Code: G160PE06
Weight: 0.01oz ONZ
