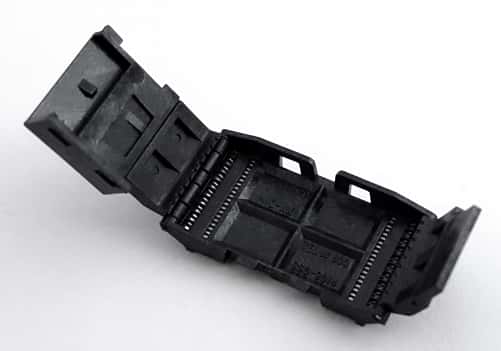

40 Pin TSOP IC Socket Surface Mount Meritec® 980020-40-01

40 Pin TSOP IC Socket Surface Mount Meritec® 980020-40-01

Manufacturer: Meritec®
Part Number: 980020-40-01
Amps: .5
Voltage (Vac): 250
Ohms: .03
Mounting: Surface Mount
Number Leads/Terminals: 40
Material: Liquid Crystal Polymer
Color: Black
Temperature: 105
Pitch (mm): .5
Termination Method: Solder

Price: $5.00
56 available for immediate delivery
Code: G239BPR10
Weight: 0.30oz ONZ
Volume Pricing
Quantity Price Each
1-9$5.00
10-99$4.50
100+$4.25
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

40 Pin SMT IC Sockets
Pitch: 0.50mm (0.0197")

Using IC sockets is advisable on boards with point to point wiring because replacing a defective IC is time consuming and can possibly damage your prototype board. The use of an IC socket is inexpensive compared to the time and effort required to replace an IC chip. IC sockets also reduce the possibility of damaging the board when swapping out IC's.

Features:
- For OEM, prototyping, programming and test applications
- Zero insertion force
- Land pad footprint common for package and socket
- Positive locking lid design
- Effortless loading and unloading
- High normal force contacts

Body Material: Liquid Crystal Polymer, 94V-0
Contact material: Copper alloy with PbSn plating

Contact resistance: 30 mOhm max.
Current rating: 0.50 AMP
Dielectric withstanding voltage: 250VAC
Insulation resistance: 500 Mohms
Minimum insertion/withdrawal cycles: 50
Temperature: -55 to 105°C

Manufactured by: Meritec®
Part Number: 980020-40-01

Full Datasheet: Meritec® 40-Pin SMD TSOP IC Socket
