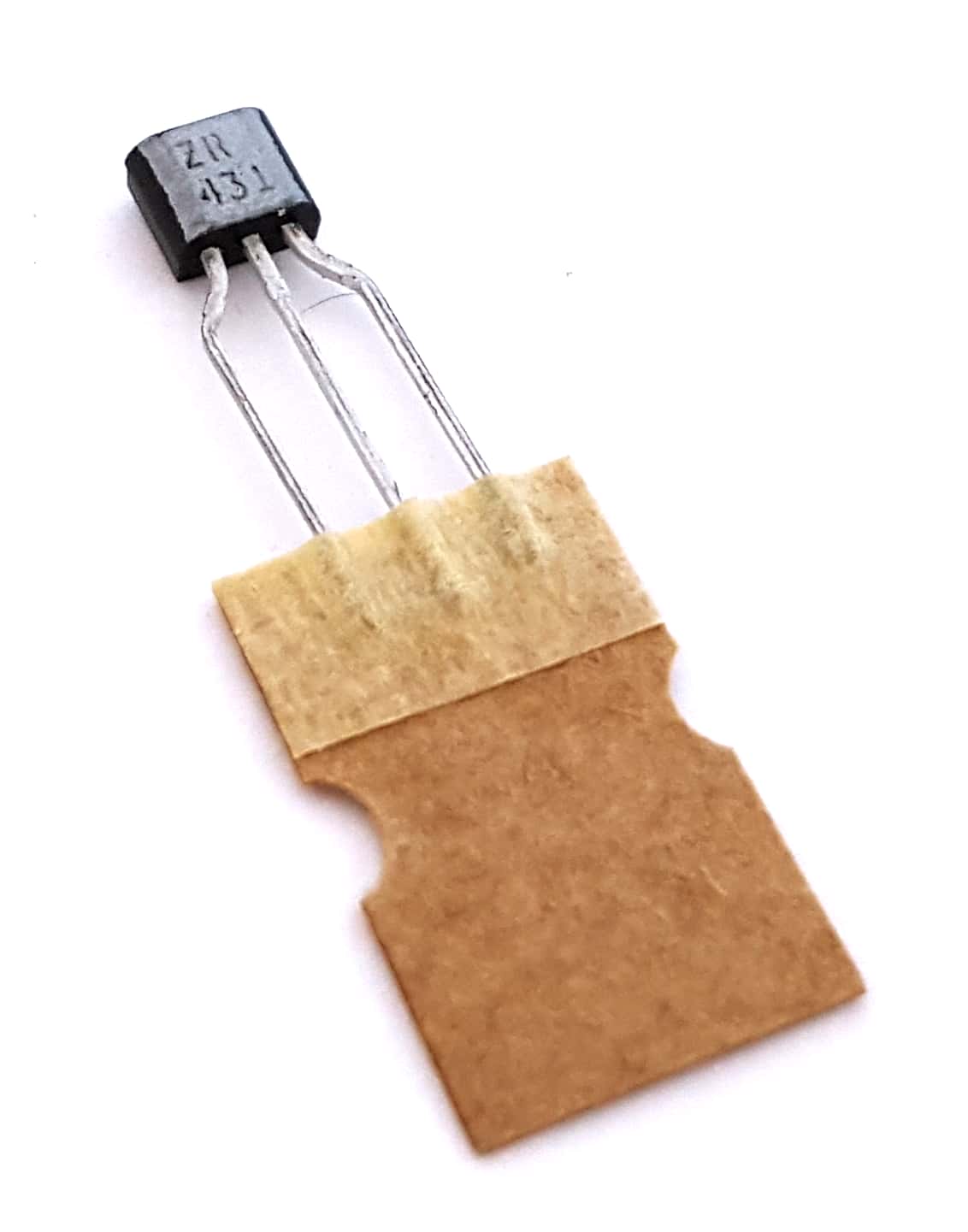

ZR431ASTZ Adjustable Zener Shunt Regulator Zetex®

ZR431ASTZ Adjustable Zener Shunt Regulator Zetex®

Manufacturer: Zetex®
Part Number: ZR431ASTZ
Tolerance (%): 2
Package: TO-92
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 3
Color: Black / Silver

Price: $0.25
1990 available for immediate delivery
Code: G244PE07
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.25
10-99$0.23
100+$0.20
