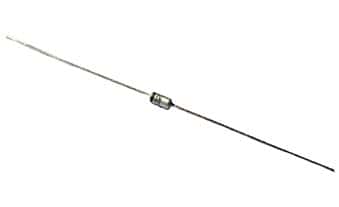

1N5248B 500mW 18V Zener Diode Motorola

1N5248B 500mW 18V Zener Diode Motorola

Manufacturer: Motorola
Part Number: 1N5248B
Voltage: 18
Watts: .5
Tolerance (%): 5
Package: DO-204AH
Lead/Terminal Type: Axial
Number Leads/Terminals: 2

Price: $0.10
2980 available for immediate delivery
Code: G290APE12
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.10
10-99$0.08
100-499$0.06
500+$0.04
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

DESCRIPTION / ADDITIONAL INFORMATION

Zener Diodes

Features:
- Hermetically Sealed Silicon Glass
- Double Slug Type Construction
- Metallurgically Bonded Construction

Maximum Ratings:
DC Power Dissipation (@ TL ≤ 75°C, Lead Length=3/8"): 500mW
Derate (above 75°C): 4mW/°C
Operating/Storage Temperature: -65°C to 200°C

Electrical Characteristics (TA=25°C unless otherwise noted):
Tolerance: 5%
Nominal Zener Voltage @ 7mA: 18.0V
Max. Zener Impedance:
- @ 7.0mA: 21 ohms
- @ 0.25mA: 600 ohms
Max. Reverse Leakage Current @ 14V: 0.1uA
Max. Zener Voltage Temperature Coefficient: +0.085%/°C

Manufactured by: Motorola
Part Number: 1N5248B

Full Datasheet: 1N5248B
