Clicky

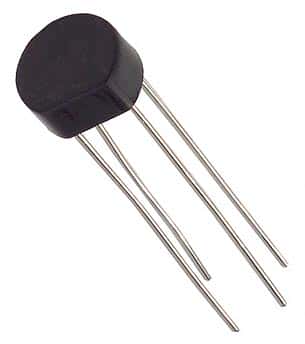

1.5A 100V Single Phase Bridge Rectifier General Instruments W01G

Manufacturer: General Instruments
Part Number: W01G
Amps: 1.5
Voltage: 100
Package: W0G
Number Leads/Terminals: 4

Price: $0.50
296 available for immediate delivery
Code: G361APF04
Weight: 0.04oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.50
10-99$0.45
100+$0.40
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$15.00
$3.85
$15.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$15.00
$8.50
$15.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$14.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$19.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$00.01
$45.00
$29.95
$45.01
$90.00
$45.95
$90.01
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

Single Phase Bridge Rectifiers
Glass Passivated

General purpose use in AC-to-DC bridge full wave rectification for for power supply, adapter, charger, lighting ballaster on consumers and home appliances applications.

Features:
- UL recognition, file number E54214
- Ideal for printed circuit boards
- Typical IR less than 0.1 μA
- High case dielectric strength
- High surge current capability
- Solder dip 260 C, 40 s

Maximum average forward rectified current: 1.5A
(@ 0.375" (9.5 mm) lead length at TA = 25 C)
Maximum repetitive peak reverse voltage: 100V
Peak forward surge current single sine-wave superimposed on rated load: 50A
Maximum DC reverse current at rated DC blocking voltage per diode (TA=25C): 5.0uA
Maximum instantaneous forward voltage drop per diode: 1.0V
TJ max.: 150C

Manufactured by: General Instruments
Part Number: W01G

Full Datasheet: W01G Bridge Rectifier
