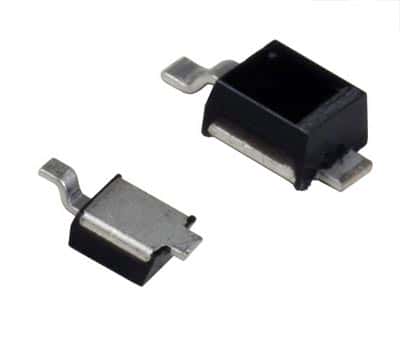

MBRM120LT3 1A 20V Schottky Diode ON Semiconductor

MBRM120LT3 1A 20V Schottky Diode ON Semiconductor

Manufacturer: ON Semiconductor
Part Number: MBRM120LT3
Amps: 1
Voltage: 20
Package: Case 457-04 Issue C
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 2
Material: Epoxy

Price: $0.75
1099 available for immediate delivery
Code: G470APF06
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.75
10-99$0.70
100+$0.60
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Surface Mount Schottky Powermite® Diodes

The Schottky Powermite uses the Schottky Barrier principle with a barrier metal and epitaxial construction that produces optimal forward voltage drop–reverse current tradeoff. The advanced packaging techniques provide for a highly efficient micro miniature, space saving surface mount Rectifier. With its unique heatsink design, the Powermite has the same thermal performance as the SMA while being 50% smaller in footprint area.

Features:
- Low Profile — Maximum Height of 1.1 mm
- Small Footprint — Footprint Area of 8.45 mm2
- Low VF Provides Higher Efficiency and Extends Battery Life
- Supplied in 12 mm Tape and Reel — 12,000 Units per Reel
- Low Thermal Resistance with Direct Thermal Path of Die on Exposed Cathode Heat Sink

Maximum Ratings
Peak Repetitive Reverse Voltage: 20V
Working Peak Reverse Voltage: 20V
DC Blocking Voltage: 20V
Average Rectified Forward Current (At Rated VR, TC = 135°C): 1.0A
Peak Repetitive Forward Current (At Rated VR, Square Wave, 100 kHz, TC = 135°C): 2.0A
Non–Repetitive Peak Surge Current (Non–Repetitive peak surge current, halfwave, single phase, 60 Hz): 50A
Operating Junction Temperature: -55°C to 125°C
Voltage Rate of Change (Rated VR, TJ = 25°C): 10,000V/us

Thermal Characteristics:
Thermal Resistance - Junction-to-Lead (Anode): 35°C/W
Thermal Resistance - Junction-to-Tab (Cathode): 23°C/W
Thermal Resistance - Junction-to-Ambient: 277°C/W

Ideal for use in portable and battery powered products
- Cellular Phones
- Cordless Phones
- Chargers
- Laptops
- Printers
- PDAs

Manufactured by: ON Semiconductor
Part Number: MBRM120LT3

Full Datasheet: ON Semiconductor MBRM120LT3 SMD Schottky Diode
