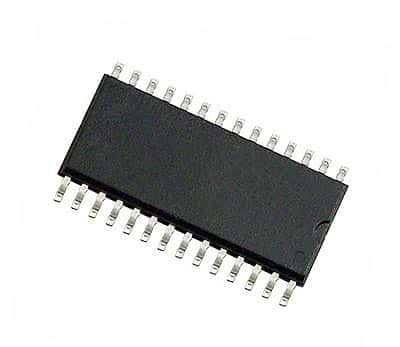

BQ4845S Real Time Clock IC SMT Benchmarq

BQ4845S Real Time Clock IC SMT Benchmarq

Manufacturer: Benchmarq
Part Number: BQ4845S
Package: SOIC
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 28

Price: $5.50
194 available for immediate delivery
Code: G497APF07
Weight: 0.03oz ONZ
Volume Pricing
Quantity Price Each
1-9$5.50
10-99$5.25
100+$5.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Real Time Clock ICs
Parallel RTC with CPU Supervisor

Features
- Real-Time Clock counts seconds through years in BCD format
- On-chip battery-backup switchover circuit with nonvolatile control for external SRAM
- Less than 500nA of clock operation current in backup mode
- Microprocessor reset valid to VCC = VSS
- Independent watchdog timer with a programmable time-out period
- Power-fail interrupt warning
- Programmable clock alarm interrupt active in battery-backup mode
- Programmable periodic interrupt
- Battery-low warning

Recommended DC Operating Conditions
Supply voltage (VCC): 4.75V to 5.5V
Input low voltage: -0.3V to 0.8V
Input high voltage: 2.2V to VCC + 0.3V
Backup cell voltage: 2.3V to 4.0V

DC Electrical Characteristics (TA = TOPR, VCC min ≤ VCC ≤ VCC max)
Input leakage current (VIN = VSSS to VCC): ±1uA max.
Output high voltage (IOH = -2.0mA): 2.4V min.
Operating supply current (Min. cycle duty = 100%,CS = VIL, I I/O = 0mA): 12mA typ.
Supply switch-over voltage: VBC typ.
Battery operation current (VBC = 3V, TA = 25°C, no load on VOUT or CEOUT): 0.3uA typ.
Power-fail-detect voltage: 4.62V typ.
Watchdog input low current (0 < VWDI < 0.8V): -10uA typ.

Crystal Specifications (DT-26 or Equivalent)
Oscillation frequency: 32.768kHz typ.
Load capacitance: 6.0pF typ.
Series resistance: 45KΩ max.
Drive level: 1uW max.

Applications:
- Fax Machines
- Copiers
- Industrial Control Systems
- Point-of-Sale Terminals
- Data Loggers
- Computers

Manufactured by: Benchmarq
Part Number: BQ4845S

Full Datasheet: Benchmarq SMT IC BQ4845S
