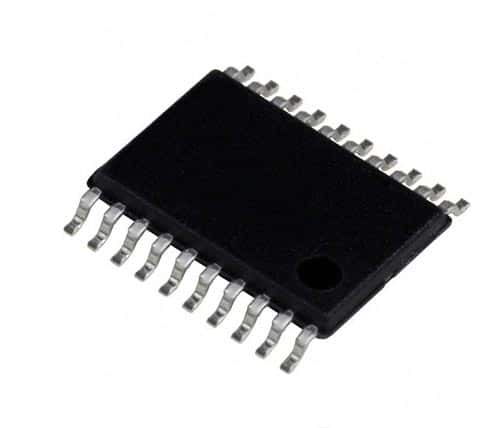

SN74HCT273PWR Flip Flop Logic SMT IC Texas Instruments®

SN74HCT273PWR Flip Flop Logic SMT IC Texas Instruments®

Manufacturer: Texas Instruments®
Part Number: SN74HCT273PWR
Package: SOIC
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 20

Price: $0.55
600 available for immediate delivery
Code: G502APF07
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.55
10-99$0.51
100+$0.45
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Octal D-Type Flip Flop Logic ICs

The SN74HCT273PWR is a positive-edge-triggered D-type flip-flop. It has a common enable input and a common clear enable input.

Features:
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 80 uA Max ICC
- Typical tpd = 12 ns
- ±4mA Output Drive at 5 V
- Low Input Current of 1 uA Max
- Inputs Are TTL-Voltage Compatible
- Contain Eight D-Type Flip-Flops
- Direct Clear Input

Recommended Operating Conditions:
Supply voltage: 4.5V to 5.5V
High-level input voltage (VCC = 4.5 V to 5.5 V): 2.0V min.
Low-level input voltage (VCC = 4.5 V to 5.5 V): 0.8V max.
Input voltage: 0V to VCC
Output voltage: 0V to VCC
Input transition rise/fall time: 500ns max.
Operating free-air temperature: -40°C to 85°C

Applications:
- Buffer/Storage Registers
- Shift Registers
- Pattern Generators

Manufactured by: Texas Instruments®
Part Number: SN74HCT273PWR
