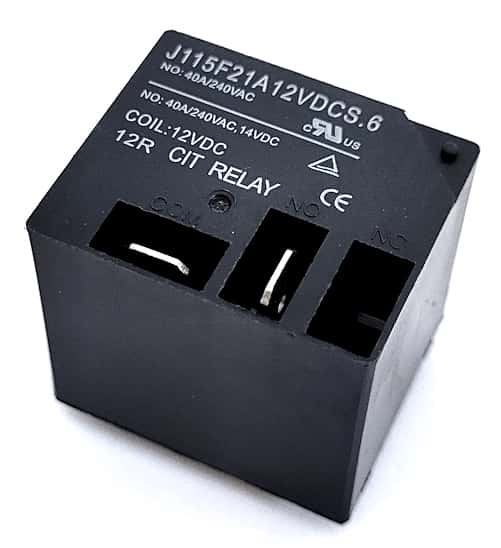

40A 12V SPST-NO PCB Relay CIT® J115F21A12VDCS.6

40A 12V SPST-NO PCB Relay CIT® J115F21A12VDCS.6

Manufacturer: CIT Relay & Switch®
Part Number: J115F21A12VDCS.6
Amps: 40
Voltage: 12
Watts: .6
Ohms: 240
Mounting: Through Hole
Lead/Terminal Type: PC Pin / Quick Connect
Number Leads/Terminals: 4
Color: Black
Temperature: -55 to 125°C
Termination Method: Solder
Size (mm): 31.9 x 27 x 28

Price: $2.00
956 available for immediate delivery
Code: G620BPV11
Weight: 1.02oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

PCB General Purpose Sealed Relays

Rating (printed on relay): 40A/240VAC, 14VDC

Features:
- UL F Class Rated Standard
- Low Coil Power Consumption
- Heavy Contact Load
- Strong Shock and Vibration Resistance

GENERAL DATA:
Electrical Life @ Rated Load (typ): 100K Cycles
Mechanical Life (typ): 10M Cycles
Insulation Resistance @ 500VDC : 1000 Megohm @ 500VDC
Dielectric Strength:
- Coil to Contact 2500Vrms min. @ sea level
- Contact to Contact 1500Vrms min. @ sea level
Shock Resistance 200m/s2 for 11 ms
Vibration Resistance 1.50mm double amplitude 10~40Hz
Operating Temperature -55 to 125°C

CONTACT DATA:
Arrangement: SPST N.O.
Resistance: <30 milliohms initial
Switching Power: 9600VA, 1120W max.
Switching Voltage: 277VAC, 110VDC max.
Switching Current: 40A

COIL DATA (DC Parameters)
Voltage:
- Rated: 12.0VDC
- Maximum: 15.6VDC
Resistance: 240Ω +/- 10%
Pick up Voltage: 9.0VDC max
Release Voltage: 1.26VDC min.
Power: 0.60W
Operate Time: 15ms
Release Time: 10ms

Dimensions
Width: 31.9mm (1.26")
Depth: 27.0mm (1.06")
Height: 28.0mm (1.10")

Manufactured by: CIT Relay & Switch®
Part Number: J115F21A12VDCS.6

Full Datasheet: CIT® J115F2 Series Relay 12.0V 40A 0.60W

RoHS Compliant
