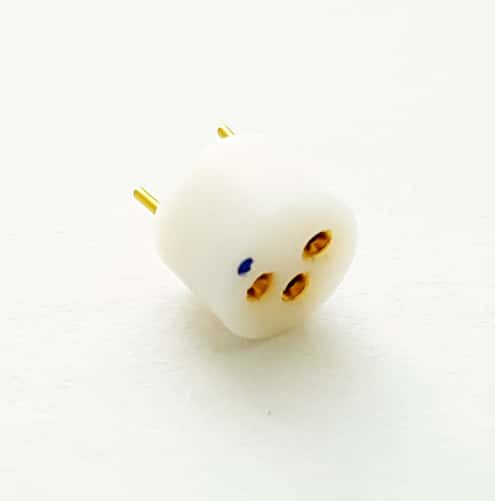

8060-1G3R 1-1437504-6 TO-5 Transistor Socket Amp

8060-1G3R 1-1437504-6 TO-5 Transistor Socket Amp

Manufacturer: Amp
Part Number: 8060-1G3R
Amps: 3
Voltage: 500
Voltage (Vac): 600
Ohms: .02
Mounting: Through Hole
Lead/Terminal Type: PCB
Number Leads/Terminals: 3
Color: White
Temperature: 125
RoHS Compliant: Yes
Shape: Round
Termination Method: Solder

Price: $7.00
126 available for immediate delivery
Code: G665APP07
Weight: 0.01oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

TO-5 Transistor Sockets
3 Positions

Materials:
Insulator: Teflon
Sleeve: Brass
Contact Plating: Gold

Bulk Contact Resistance: 20 milliohms
Current Rating: 3.0A
Operating Voltage: 500 V
Dielectric Withstanding Voltage: 600 VAC
Operating Temperature: -55 to 125 Deg. C.

Dimensions:
Diameter: 6.5mm (0.255")
Height: 5.0mm (0.195")
Lead Space: 3.81mm (0.150")
Lead Length: 2.61mm (0.0103")

Manufacturer by: Amp
Part Number: 8060-1G3R or 1-1437504-6

Full Datasheet: 3 Position TO-5 Transistor Socket Connector

RoHS Compliant
