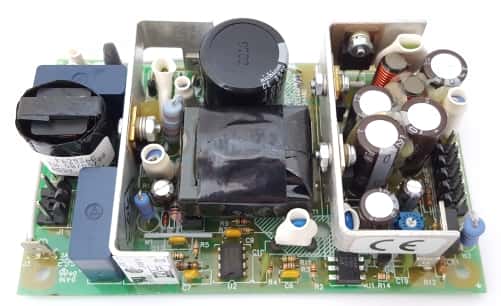

MAP40-3100 40W AC DC Converter Power Supply Power One

MAP40-3100 40W AC DC Converter Power Supply Power One

Manufacturer: Power One
Part Number: MAP40-3100
Amps: 3 / 2 / .3
Voltage: 5 / 12 /-12
Voltage (Vac): 90 ~ 264
Watts: 40
Mounting: Chassis
Temperature: 70
Obsolete: Yes
Shape: Rectangle
Frame Type: Open

Price: $110.00
Sorry, we are currently sold out of
'MAP40-3100 40W AC DC Converter Power Supply Power One'.
Please check back later.
Code: G674APP12
Weight: 11.00oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

AC/DC Converter Power Supplies
Original - New Old Stock
Series MAP40

Features:
- Open Frame
- Universal input 85-264 VAC
- CE marked to Low Voltage Directive
- Input transient & ESD compliance to EN61000-4-2/-3/-4
- Meets EN55022 conducted and radiated limits
- Greater than 311,000 Hours MTBF

Power Rating: 40.0W

Number of Outputs: 3
Voltage: 5.0V / 12.0V / -12.0V
Adjustment Range: 4.75 - 5.25V / Fixed / Fixed
Output Current: 3.0V / 2.0A / 300mA
Peak Output Current: 5.0V / 3.5V / 500mA
Line Regulation: 0.2% / 1.0% / 1.0%
Load Regulation: 2.0% / 3.5% / 2.0%
Efficiency: 70%
Input AC Voltage: 90~264 VAC
Input Frequency: 47 - 63 Hz
Operating Temperature (with derating): 0 to 70 Deg. C.

Dimensions: 127mm x 76.2mm x 31.8mm (5.0" x 3.0" x 1.25")

Manufactured by: Power One
Part Number: MAP40-3100

Full Datasheet: 40 Watt AC-DC Switching Power Supply
