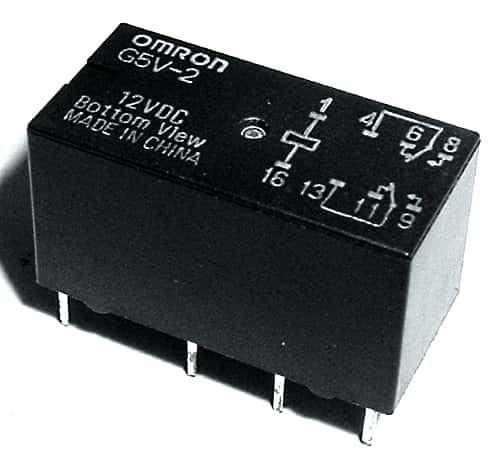

2.0A 12V Miniature PCB Mount Signal Relay Omron® G5V-2-DC12

2.0A 12V Miniature PCB Mount Signal Relay Omron® G5V-2-DC12

Manufacturer: Omron
Part Number: G5V-2-DC12
Amps: 2
Voltage: 12
Ohms: 288
Mounting: PCB
Lead/Terminal Type: PCB Pin
Number Leads/Terminals: 8
Color: Black
Temperature: 65
Shape: Rectangle
Termination Method: Solder

Price: $2.25
48 available for immediate delivery
Code: G739APR05
Weight: 0.20oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Miniature Relay for Signal Circuits
DPDT (2 Form C)
Suitable for handling low signals in computer peripherals, telecommunications and security equipment.

Features:
- Non-Latching
- Capable of switching loads 10μA to 2 A
- Conforms to FCC part 68 1,500 V surge withstand
- Reliable Ag + Au-clad, bifurcated crossbar contacts
- Fully-sealed construction

Contact Specs
Rated Load
- 0.50A @ 125 VAC
- 2.0A @ 30 VDC
Carry Current: 2.0A
Operating Current: 2.0A
Contact Resistance: 50 milliohm

Coil Specs
Rated Voltage: 12.0V
Rated Current: 41.7mA
Resistance: 288 Ohms
Power Consumption: 500mW
Operating Voltage (max): 125VDC / 125VAC
Temperature: -25 to 65°C

Manufactured by: Omron®
Part Number: G5V-2-DC12

Full Datasheet: Omron® DPDT Mini Low Signal Relay 2 Amp 12 Volt
