1.0W 0.007 Ohms SMT Metal Element Current Sense Resistor Dale Vishay WSL25127L000FEK
Manufacturer: Dale / Vishay
Part Number: WSL25127L000FEK
Watts: 1
Ohms: .007
Tolerance (%): 1
Package: 2512
Mounting: Surface Mount
Number Leads/Terminals: 2
Color: Black
Temperature: 170
RoHS Compliant: Yes
Shape: Rectangle
Termination Method: Solder
Price: $1.00
1040 available for immediate delivery
Code: G751APR03
Weight: 0.01oz
|
Additional Information
Metal Element Current Sensing Chip ResistorsSurface Mount
Size: 2512 (6432)
Features:
- Proprietary processing technique produces extremely low resistance values
- All welded construction
- Very low inductance
- Excellent frequency response
- Low thermal EMF (< 3 uV/ deg. C)
- Solid metal nickel-chrome or manganese-copper alloy resistive element with low TCR (< 20 ppm/ deg. C)
Power Rating: 1.0 W
Resistance: 0.007 Ohms
Tolerance: 1%
Operating Temperature: -65 to 170 Deg. C.
Dimensions
Length: 6.35mm (0.25")
Width: 3.18mm (0.125")
Height: 0.635mm (0.025")
Ideal for all types of current sensing, voltage division and pulse applications
- Switching and Linear Power Supplies
- Instruments
- Power Amplifiers
Manufacturer by: Dale / Vishay
Part Number: WSL25127L000FEK
Full Datasheet: Dale Vishay SMD Current Sense Chip Resistor 1W 8 milliohms
RoHS Compliant

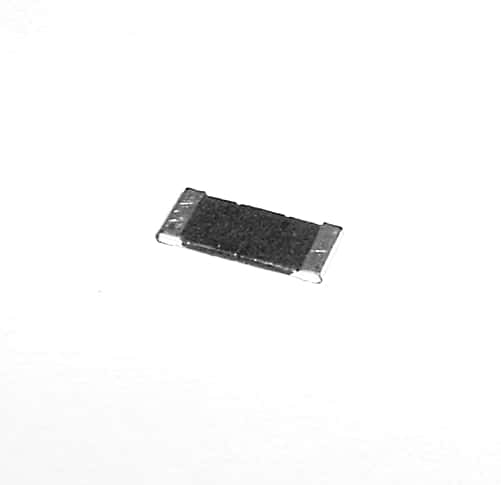

Picture shown may not be of the actual value.
