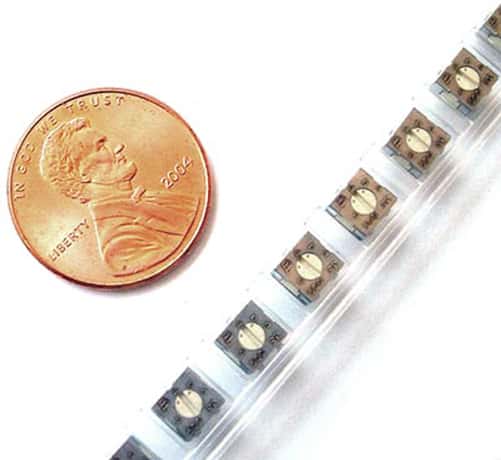

500 ohm 1/4W SMT Trimmer Potentiometer Bourns 3314J-1-501E

500 ohm 1/4W SMT Trimmer Potentiometer Bourns 3314J-1-501E

Manufacturer: Bourns
Part Number: 3314J-1-501E
Voltage: 300
Watts: .25
Ohms: 500
Tolerance (%): 20
Package: Top Adjust
Mounting: Surface Mount
Lead/Terminal Type: J-Hooks
Number Leads/Terminals: 3
Color: Silver
Temperature: 125
Shape: Square
Termination Method: Solder
Size (mm): 4

Price: $1.00
325 available for immediate delivery
Code: G757APR03
Weight: 0.01oz ONZ
