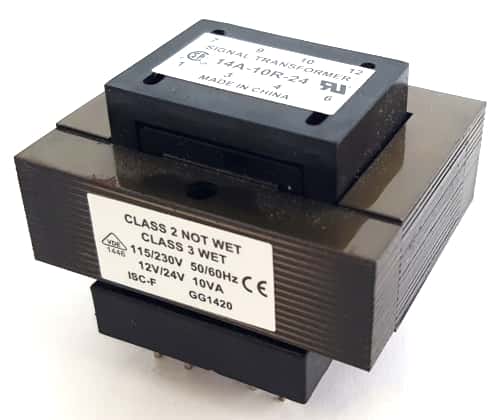

14A-10R-24 10VA One-4-All™ Laminated Power Transformer Signal Transformer

14A-10R-24 10VA One-4-All™ Laminated Power Transformer Signal Transformer

Manufacturer: Signal Transformers®
Part Number: 14A-10R-24
Amps: .84
Voltage: 12
Mounting: Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 8
Color: Black
RoHS Compliant: Yes
Termination Method: Solder

Price: $10.00
12 available for immediate delivery
Code: G765APR07
Weight: 8.00oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Laminaterd Core Power Transformers
One-4-All™ Series

Power: 10 VA
Dielectric Strength - 4000 Vrms Hipot
Dual Primaries - 115/230 V - 50/60 Hz
Dual Secondaries - Series or parallel
Insulation System - Class F, 155º C, UL 1446 (E66312)
Secondary RMS Ratings
Series: 24.0 VCT @ 0.42A
Parallel: 12V @ 0.84A

Dimensions:
Length: 47.6mm (1.87")
Width: 39.7mm (1.56")
Seated Height: 34.9mm (1.37")

Manufactured by: Signal Transformer®
Part Number: 14A-10R-24

Full Datasheet: Power Transformer 10VA 115/230 V - 50/60 Hz

RoHS Compliant
