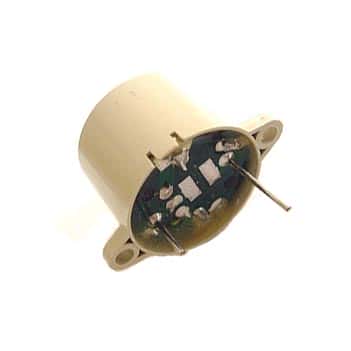

Piezo Buzzer 75dB 20mA 4-15V PB2130UP002A TDK

Piezo Buzzer 75dB 20mA 4-15V PB2130UP002A TDK

Manufacturer: TDK
Part Number: PB2130UP002A
Amps: .02
Voltage: 4 - 15
Lead/Terminal Type: Pin

Price: $1.38
Sorry, we are currently sold out of
'Piezo Buzzer 75dB 20mA 4-15V PB2130UP002A TDK'.
Please check back later.
Code: HW055PE08
Volume Pricing
Quantity Price Each
1-9$1.38
10-99$1.30
100+$1.25
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

DESCRIPTION / ADDITIONAL INFORMATION

Piezoelectronic Buzzers
PB Series
Pin Terminal

Features:
- High-performance buzzers with a unimorph piezoelectric ceramic element and an integral self-excitation oscillator circuit.
- Extremely low power consumption in comparison to electromagnetic units
- No switching contacts to ensure long life and no electrical noise.
- High acoustic output with minimal voltage

Specifications:
Resonant Frequency: 3.3±0.8kHz
Operating Voltage: 4.0V to 15V
Sound Pressure (dB(A)/100cm): 75dB min.
Consumption Current: 20mA max.
Testing Voltage: 12V

Dimensions:
Diameter (including tabs): 30mm
Diameter (excluding tabs): 21mm
Distance Between Mounting Holes: 25mm
Height: 16mm

Applications:
- Fire Alarms
- Smoke Detectors
- Home Security Systems
- Call Buzzers
- Car Alarm Systems
- Clocks
- Cash Registers

Manufactured by: TDK
Part Number: PB2130UP002A

Full Datasheet: PB2130UP002A
