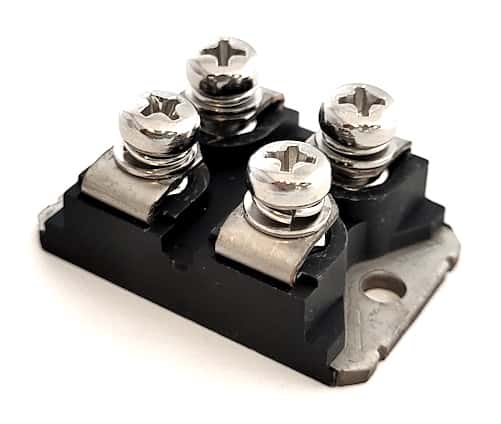

APT80F60J 84A 600V 961W N-Channel Power MosFET Advanced Power Technology®

APT80F60J 84A 600V 961W N-Channel Power MosFET Advanced Power Technology®

Manufacturer: Advanced Power Technology®
Part Number: APT80F60J
Capacitance (uF): .0239
Amps: 84
Voltage: 600
Watts: 961
Ohms: .055
Package: SOT-227
Number Leads/Terminals: 4
Color: Black / Silver
Temperature: -55 to 150°C
Shape: Rectangular
Termination Method: Screw
Size (mm): 38.2 x 25.4 x 12.2

Price: $55.00
38 available for immediate delivery
Code: IC1020APV09
Weight: 1.20oz ONZ
Quantity:

First Class Mail Shipping Costs:
