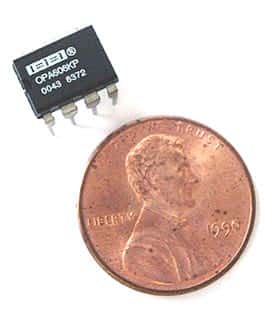

OPA606KP OPA606 KP DiFET OP Amp IC

OPA606KP OPA606 KP DiFET OP Amp IC

Manufacturer: Texas Instruments®
Part Number: OPA606KP

Price: $6.20
1 available for immediate delivery
Code: IC207PD
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Operational Amplifiers

Features:
Wide Bandwidth: 13MHz typ.
High Slew Rate: 35V/us typ.
Low Bias Current: 10pA max @ TA=25°C
Low Offset Voltage: 500uV max.
Low Distortion: 0.0035% typ. @ 10kHz

Typical Electrical Specifications
(At VCC = ±15VDC and TA = +25°C unless otherwise noted)

Gain Bandwidth (Small Signal); 12 MHz typ.
Full Power Response (20Vp-p, RL = 2kW): 470kHz
Input Offset Voltage (VCM = 0VDC): ±300uV
Average Drift (TA = TMIN to TMAX): ±10uV/°C
Input Bias Current (VCM = 0VDC): ±8pA
Impedance, Differential: 10^13||1pF
Common-Mode Input Range: ±11V
Voltage Output (RL = 2kohm): ±12V
Current Output (VO = ±10VDC): ±10mA
Output Resistance (DC Open Loop): 40 ohm
Load Capacitance Stability (Gain=+1): 1000pF

Applications:
Optoelectronics
Data Acquisition
Test Equipment
Audio Amplifiers

Manufactured by: Texas Instruments®
Part Number: OPA606KP
