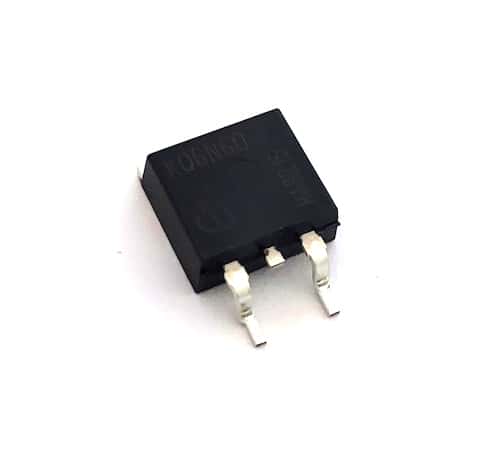

SKB06N60ATMA1 12A 600V 68W IGBT Transistor SMT Infineon®

SKB06N60ATMA1 12A 600V 68W IGBT Transistor SMT Infineon®

Manufacturer: Infineon®
Part Number: SKB06N60ATMA1
Capacitance (uF): .00035 (in) / .000038 (out)
Amps: 12
Voltage: 600
Watts: 68
Package: TO-263 (D2PAK)
Mounting: Surface Mount
Number Leads/Terminals: 2 + Tab
Color: Black
Temperature: -55 to 150°C
RoHS Compliant: Yes
Obsolete: Yes
Termination Method: Solder

Price: $3.00
250 available for immediate delivery
Code: IC335BPV11
Weight: 0.02oz ONZ
