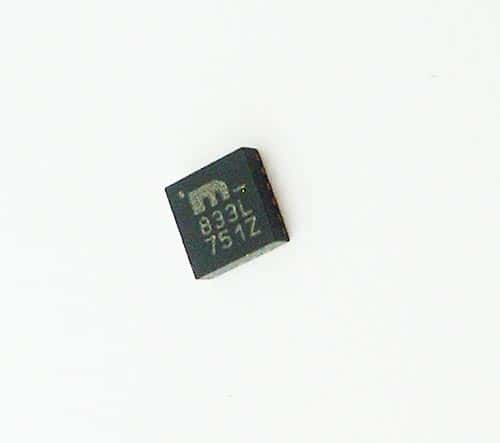

SY88983VMG 3.2GBPS Low Power Limiting Amplifier IC Micrel

SY88983VMG 3.2GBPS Low Power Limiting Amplifier IC Micrel

Manufacturer: Micrel
Part Number: SY88983VMG
Package: MLF
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 16

Price: $9.85
1000 available for immediate delivery
Code: IC515PE04
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$9.85
10-99$9.50
100+$9.25

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Low Power Limiting Amplifiers
16 Lead MicroLead Frame™

Description / Additional Information

Features:
- Multi-Rate up to 3.2Gbps operation
- Wide gain-bandwidth product
--• 38dB differential gain
--• 2.2GHz 3dB bandwidth
- Low noise 50Ω CML data outputs
--• 800mVpp output swing
--• 60ps edge rates
--• 5psrms typ. random jitter
--• 15pspp typ. deterministic jitter
- Chatter-free Signal Detect (SD) output
--• 4.6dB electrical hysteresis
--• OC-TTL output with internal 5kΩ pull-up resistor
- Programmable SD sensitivity using single external resistor
- Internal 50Ω data input termination
- TTL EN input allows feedback from SD

DC Electrical Characteristics:
Power Supply Current (3.3V, Total device current with no output load.): 32mA typ.
VREF Voltage: VCC-1.3V typ.
Differential Output Offset: ±80mV max.
Single-Ended Output & Input Impedance: 50Ω typ.

TTL DC Electrical Characteristics:
SD Output HIGH Level (Sourcing 100uA): 2.4V min.
SD Output LOW Level (Sinking 2mA): 0.5V max.
EN Input HIGH Voltage: 2.0V min.
EN Input LOW Voltage: 0.8V max.
EN Input HIGH Current (VIN = 2.7V): 20uA max.
EN Input LOW Current (VIN = 0.5V): -0.3mA min.

AC Electrical Characteristics
SD Hysteresis: 4.6dB typ.
Power Supply Rejection Ratio: 35dB typ.
SD Release Time: 0.1us typ.
SD Assert Time: 0.2us typ.
Differential Voltage Gain: 38dB typ.
3dB Bandwidth: 2.2GHz typ.

Applications:
- 1.25Gbps and 2.5Gbps Gigabit Ethernet
- 1.062Gbps and 2.125Gbps Fibre Channel
- 155Mbps, 622Mbps, 1.25Gbps and 2.5Gbps SONET/SDH
- Gigabit interface converter (GBIC)
- Small form factor (SFF) and small form factor pluggable (SFP) transceivers
- Parallel 10G Ethernet
- High-gain line driver and line receiver

Manufactured by: Micrel
Part Number: SY88983VMG

Full Datasheet: SY88983VMG
