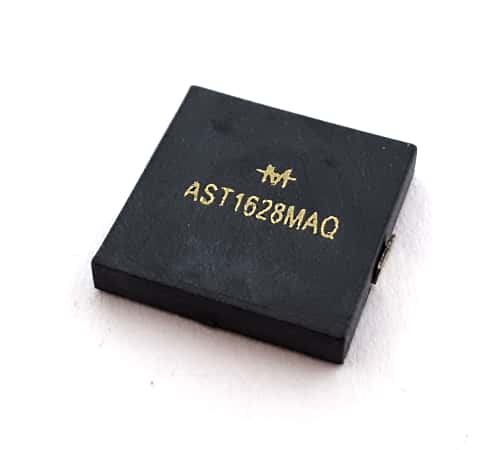

Piezo Buzzer Transducer SMT 4KHz 3V 5mA Mallory® AST1628MATRQ

Piezo Buzzer Transducer SMT 4KHz 3V 5mA Mallory® AST1628MATRQ

Manufacturer: Mallory Sonalert®
Part Number: AST1628MATRQ
Capacitance (uF): .016
Amps: .005
Voltage: 3
Mounting: Surface Mount
Lead/Terminal Type: Solder Pad
Number Leads/Terminals: 2
Material: Plastic Resin
Color: Black
Temperature: -30 to 70°C
RoHS Compliant: Yes
Shape: Square
Termination Method: Solder
Size (mm): 16 x 16 x 2.9

Price: $2.50
1430 available for immediate delivery
Code: IC591BPT11
Weight: 0.04oz ONZ
Volume Pricing
Quantity Price Each
1-10$2.50
11-24$2.00
25-99$1.60
100-249$1.50
250+$1.30
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Surface Mount Piezo Buzzer Audio Transducers
Single Tone

Rated Voltage: 3.0V
Voltage Range: 1V to 25V
Current Rating: 5.0mA
Resonant Frequency: 4000Hz (4KHZ)
Sound Pressure Level: 75dBA (min)
Capacitance: 16,000pF
Operating Temperature: -30 to 70°C

Dimensions:
Length: 16.0mm (0.63")
Width: 16.0mm (0.63")
Height: 2.9mm (0.114")

Manufactured by: Mallory Sonalert®
Part Number: AST1628MATRQ

Full Datasheet: Mallory Sonalert® AST Series SMT Piezo Audio Indicator 75dBA

RoHS Compliant
