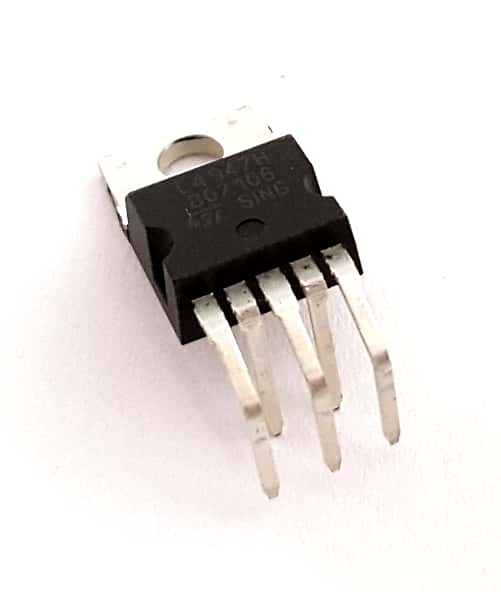

L4947H 0.5A 5V Low Drop Voltage Regulator IC STMicroelectronics®

L4947H 0.5A 5V Low Drop Voltage Regulator IC STMicroelectronics®

Manufacturer: STMicroelectronics®
Part Number: L4947H
Amps: .5
Voltage: 5
Package: Pentawatt
Number Leads/Terminals: 5
Color: Black
Temperature: -55 to 150°C
Termination Method: Solder

Price: $4.75
4832 available for immediate delivery
Code: IC603PE12
Weight: 0.07oz ONZ
Volume Pricing
Quantity Price Each
1-9$4.75
10-99$4.50
100-499$4.25
