74HC139 MM74HC139N Dual 2-to-4 Line Decoder IC Fairchild

74HC139 MM74HC139N Dual 2-to-4 Line Decoder IC Fairchild

Manufacturer: Fairchild
Part Number: MM74HC139N

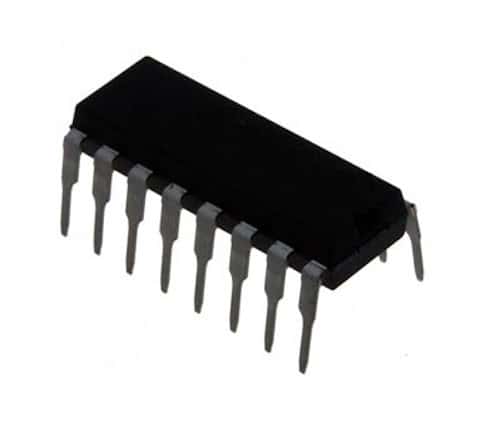

Package: Dip
Number Leads/Terminals: 16

Price: $3.35
4900 available for immediate delivery
Code: IC607PE12
Weight: 0.02oz ONZ
Volume Pricing
Quantity Price Each
1-9$3.35
10-99$3.15
100-499$2.85
500+$2.55
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$15.00
$4.85
$15.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$15.00
$9.50
$15.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$14.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$19.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

DESCRIPTION / ADDITIONAL INFORMATION

Dual 2-to-4 Line Decoders ICs

The MM74HC139 decoder uses advanced silicon-gate CMOS technology. It has 2 independent 1-of-4 decoders each with a single active low enable input. The MM74HC139 outputs can drive 10 low power Schottky TTL equivalent loads. Static discharge protection is provided by diodes to VCC and ground.

Features:
Typical propagation delays:
- Select to outputs (4 delays): 18ns
- Select to output (5 delays): 28ns
- Enable to output: 20ns
Low power: 40μW quiescent supply power
Fanout of 10 LS-TTL devices
Input current maximum 1uA, typical 10pA

Recommended Operating Conditions:
Supply voltage: 2.0V to 6.0V
DC input or Output Voltage: 0V to VCC
Operating Temperature Range: -40C to 85C
Input Rise or Fall Times:
- VCC = 2.0V: 1000ns
- VCC = 4.5V: 500ns
- VCC = 6.0V: 400ns

Applications:
- Memory Address Decoding
- Data Routing Applications

Manufactured by: Fairchild
Part Number: MM74HC139N

Full Datasheet: MM74HC139N
