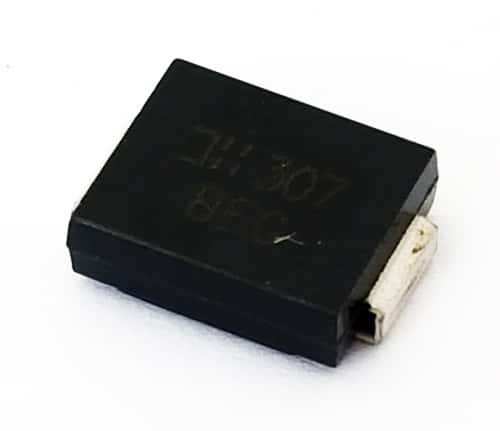

SMCJ13CA SMCJ13CA-13 Surface Mount Diode TVS Diodes Inc.

SMCJ13CA SMCJ13CA-13 Surface Mount Diode TVS Diodes Inc.

Manufacturer: Diodes Inc.
Part Number: SMCJ13CA-13
Voltage: 13
Watts: 1500
Package: SMC
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 2

Price: $0.60
4900 available for immediate delivery
Code: IC625APE12
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.60
10-99$0.55
100-499$0.50
500-999$0.45
1000+$0.40
