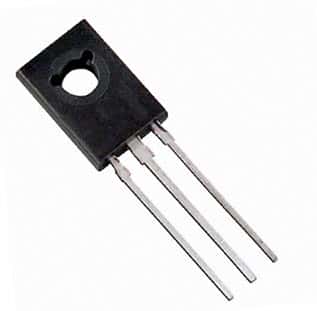

MJE170G 3A 40V PNP Power Transistor ON Semiconductor

MJE170G 3A 40V PNP Power Transistor ON Semiconductor

Manufacturer: ON Semiconductor
Part Number: MJE170G
Amps: 3
Voltage: 40
Watts: 12.5
Package: TO-225AA
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 3
Material: Plastic
Color: Black
Termination Method: Solder

Price: $0.20
2300 available for immediate delivery
Code: IC662APH04
Weight: 0.02oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.20
10-99$0.18
100+$0.16

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Silicon Power Transistors
PNP

Maximum Ratings
Collector-Base Voltage: 60V
Collector-Emitter Voltage: 40v
Emitter-Base Voltage: 7.0V
Continuous Collector Current: 3.0A
Peak Collector Current: 6.0A
Base Current: 1.0A
Total Power Dissipation: 1.5W

Thermal Characteristics:
Thermal Resistance Junction to Case: 10°C/W
Thermal Resistance Junction to Ambient: 83.4°C/W

Electrical Characteristics (TA=25°C unless otherwise noted):
ON CHARACTERISTICS
Collector-Emitter Sustaining Voltage: 40V min.
Collector Cutoff Current: 0.1uA max.
Emitter Cutoff Current: 0.1uA max.

OFF CHARACTERISTICS
DC Current Drain (IC = 100mA, VCE = 1.0V): 50 min.
Collector-Emitter Saturation (IC = 500mA, IB = 50mA): 0.3V max.
Base-Emitter Saturation Voltage (IC = 1.5A, IB= 150mA): 1.5V max.
Base-Emitter On Voltage (IC = 500mA, VCE = 1.0V): 1.2V max.

Manufactured by: ON Semiconductor
Part Number: MJE170G

Full Datasheet: MJE170G PNP Transistor ON Semi
