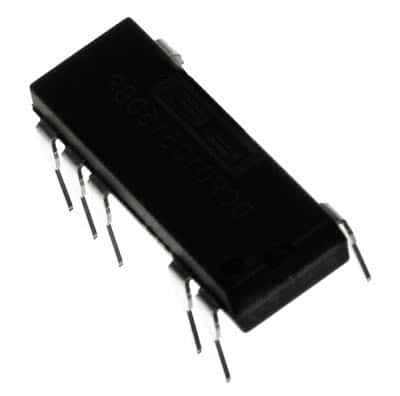

DCV010505P DC/DC Converter Unregulated IC Burr Brown

DCV010505P DC/DC Converter Unregulated IC Burr Brown

Manufacturer: Burr Brown
Part Number: DCV010505P
Watts: 1
Package: DIP
Mounting: Through Hole
Number Leads/Terminals: 7
Material: Plastic
Color: Black
Shape: Rectangle
Termination Method: Solder

Price: $8.76
20 available for immediate delivery
Code: IC755APH05
Weight: 0.04oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

DC/DC Converter IC
Single Output

The DCV010505Pi s a 1W, 1500Vrms isolated, unregulated DC/DC converter. It needs a minimum of external components and with on-chip device protection, this device has additional features such as output disable and synchronization of switching frequencies. The DCV010505P is very reliable and has a power density of 40W/in3 (2.4W/cm3).

Features:
- Up to 85% Efficiency
- Thermal Protection
- Device-to-Device Synchronization
- Short-Circuit Protection

Typical Electrical Characteristics (TA=25°C unless otherwise noted):

OUTPUT:
Power (100% Full Load): 0.97W
Ripple (O/P Capacitor=1uF, 50% load): 20mVp-p
Voltage vs Temp
- Room to Cold: 0.046%/°C
- Room to Hot: 0.016%/°C
SWITCHING/SYNCHRONIZATION
Oscillator Frequency (Switching Frequency-foso/2): 800kHz
Sync Input Low: 0 to 0.4V
Sync Input Current: (Vsync=+2V): 75uA
Disable Time: 2uS
RELIABILITY
Demonstrated (TA = 55°C): 75FITS
THERMAL SHUTDOWN:
IC Temperature @ Shutdown: 150°C
Shutdown Current: 3mA
INPUT VOLTAGE: 5V typ.
OUTPUT VOLTAGE: 5V typ.
LOAD REGULATION: 23%
NO LOAD CURRENT: 20mA
EFFICIENCY: 78%
BARRIER CAPACITANCE: 3.6pF
LEAKAGE CURRENT: 0.9uA

Applications
- Industrial Control and Instrumentation
- Point-of-Use Power Conversion
- Ground Loop Elimination
- Data Acquisition
- Test Equipment

Manufactured by: Burr Brown
Part Number: DCV010505P

Full Datasheet: Burr Brown DC/DC Converter IC DCV010505P
