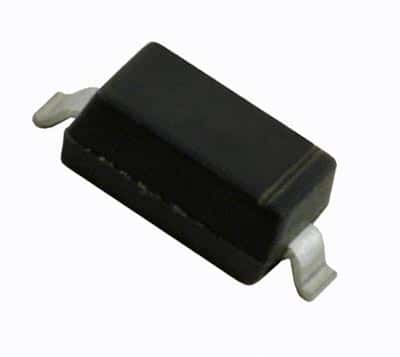

BAS16HT1 200mA 75V SMT Switching Diode ON Semiconductor

BAS16HT1 200mA 75V SMT Switching Diode ON Semiconductor

Manufacturer: ON Semiconductor
Part Number: BAS16HT1
Amps: .2
Voltage: 75
Watts: .2
Package: SOD-323
Mounting: Surface Mount
Number Leads/Terminals: 2
Color: Black
Shape: Rectangle
Termination Method: Solder

Price: $0.10
2748 available for immediate delivery
Code: IC777APH07
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.10
10-99$0.08
100-499$0.06
500+$0.04

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Small Signal Switching Diodes

Maximum Ratings
Continuous Reverse Voltage: 75V
Peak Forward Current: 200mA
Peak Forward Surge Current: 500mA

Thermal Characteristics
Total Device Dissipation FR-5 Board,TA = 25°C: 200mW
- Derate above 25°C: 1.57mW/°C
Thermal Resistance Junction to Ambient: 635°C/W
Junction and Storage Temperature: 150°C

Electrical Characteristics (OFF)(TA=25°C unless otherwise noted):
Reverse Voltage Leakage Current:
- VR = 75 Vdc: 1.0uA max.
- VR = 75 Vdc, TJ = 150°C: 50uA max.
- VR = 25 Vdc, TJ = 150°C: 30uA max.
Reverse Breakdown Voltage (IBR = 100 mAdc): 75V min.
Forward Voltage:
- IF = 1.0 mAdc: 715mV max.
- IF = 10 mAdc: 855mV max.
- IF = 50 mAdc: 1000mV max.
- IF = 150 mAdc: 1250mV max.
Diode Capacitance (VR = 0, f = 1.0 MHz): 2.0pF max.
Forward Recovery Voltage (IF = 10 mAdc, tr = 20 ns): 1.75V max.
Reverse Recovery Time (IF = IR = 10 mAdc, RL = 50 ohm): 6.0ns max.
Stored Charge (IF = 10 mAdc to VR = 5.0 Vdc, RL = 500 ohm): 45pC max.

Manufactured by: ON Semiconductor
Part Number: BAS16HT1

Full Datasheet: 0.2A 75V SMD General Purpose Switching Diodes ON Semi
