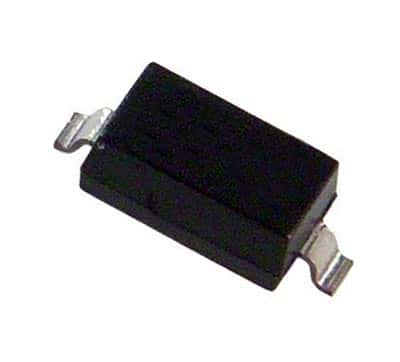

MMSZ5243BT1 SMT Zener Voltage Regulator Diode Motorola

MMSZ5243BT1 SMT Zener Voltage Regulator Diode Motorola

Manufacturer: Motorola
Part Number: MMSZ5243BT1
Voltage: 13
Watts: .5
Tolerance (%): 5
Package: SOD-123
Mounting: Surface Mount
Number Leads/Terminals: 2
Material: Thermoplastic
Termination Method: Solder

Price: $0.10
2980 available for immediate delivery
Code: IC781APH07
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.10
10-99$0.08
100-499$0.06
500+$0.03

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

SMT Zener Voltage Regulator Diodes

Features:
- UL94 V-0 Flammability Rating
- Corrosion resistant finish
- Small Package Size for High Density Applications
- General Purpose, Medium Current
- ESD Rating of Class 3 (>16 KV) per Human Body Model

Maximum Ratings
Total Power Dissipation on FR-5 Board @ TL = 75°C: 500mW
- Derated above 75°C: 6.7mW/°C
Thermal Resistance-Junction to Ambient: 340°C/W
Thermal Resistance-Junction to Lead: 150°C/W
Junction and Storage Temperature Range: -55°C to 150°C

Electrical Characteristics (TA=25°C, VF = 0.9 V Max. @ IF = 10 mA unless otherwise noted):
Reverse Zener Voltage @ IZT (9.5mA):
- Minimum: 12.35V
- Nominal: 13.0V
- Maximum: 13.65V
Maximum Zener Impedance @ IZT (9.5mA): 13 ohms
Maximum Zener Impedance @ IZK (0.25mA): 600 ohms
Reverse Leakage Current @ VR (9.9V): 0.5uA

Manufactured by: Motorola (ON Semiconductor)
Part Number: MMSZ5243BT1

Full Datasheet: 500mW SMD Zener Voltage Regulators Motorola
