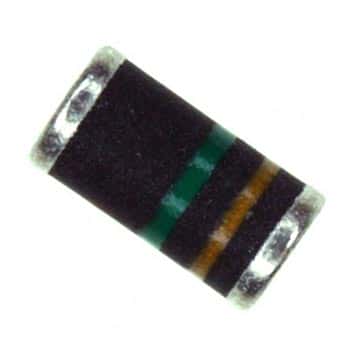

RLZ5232BTE11C 5.6V Surface Mount Zener Diode Rohm

RLZ5232BTE11C 5.6V Surface Mount Zener Diode Rohm

Manufacturer: Rohm
Part Number: RLZ5232BTE11C
Voltage: 5.6
Watts: .5
Tolerance (%): 5
Package: MELF
Mounting: Surface Mount
Lead/Terminal Type: Leadless
Shape: Round (Cylindrical)
Termination Method: Solder

Price: $0.50
2000 available for immediate delivery
Code: IC783APH07
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.50
10-99$0.45
100+$0.40
