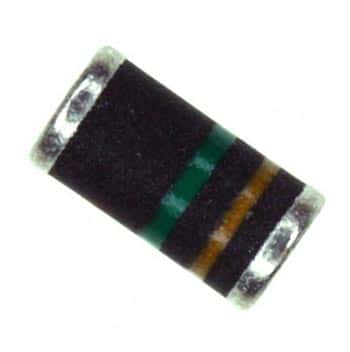

RLZ5254BTE11C 27.0V Zener Diode SMT MELF Rohm

RLZ5254BTE11C 27.0V Zener Diode SMT MELF Rohm

Manufacturer: Rohm
Part Number: RLZ5254BTE11C
Voltage: 27
Watts: .5
Tolerance (%): 5
Package: MELF
Mounting: Surface Mount
Lead/Terminal Type: Leadless
Shape: Round (Cylindrical)
Termination Method: Solder

Price: $0.50
1196 available for immediate delivery
Code: IC785APH07
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.50
10-99$0.45
100+$0.40

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Surface Mount Zener Diode
Package: LL-34
Series: RLZ5000

Features:
- Small size for surface mount applications
- Compatible with JEDEC 1N5000 series
- Glass sealed for high reliability
- Silicon planar construction

Maximum Ratings
Total Power Dissipation: 500mW
Junction Temperature: 175°C
Storage Temperature: -65° to 175°C

Electrical Characteristics (TA=25°C unless otherwise noted):
Zener Voltage @ IZT = 20mA:
- Minimum: 25.65V
- Nominal: 27.0V
- Maximum: 28.35V
Maximum Zener Impedance:
- @ IZT = 4.6mA: 41 ohms
- @ IZ = 0.25mA: 600 ohms
Maximum Reverse Leakage Current: 0.1mA @ 21.0V
Maximum Zener Temperature Coefficient @ VZ: +0.090%/°C

Manufactured by: Rohm
Part Number: RLZ5254BTE11C

Full Datasheet: Rohm SMT MELF Zener Diodes RLZ5254BTE11C
