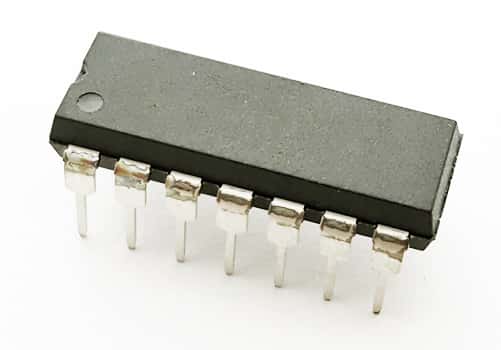

74HC03N Quad 2-Input NAND Gate CMOS IC NXP Semiconductor

74HC03N Quad 2-Input NAND Gate CMOS IC NXP Semiconductor

Manufacturer: NXP Semiconductors
Part Number: 74HC03N
Amps: .05
Voltage: 5
Package: DIP
Mounting: Through Hole
Number Leads/Terminals: 14
Material: Plastic
Color: Black
Temperature: 125
RoHS Compliant: Yes
Shape: Rectangle
Termination Method: Solder

Price: $0.50
1390 available for immediate delivery
Code: IC849APP05
Weight: 0.02oz ONZ
