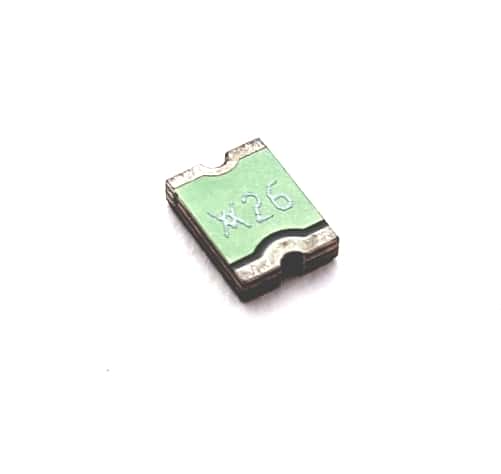

2.6A 6V SMT PolySwitch Fuse Tyco/Raychem MINISMDC260-2

2.6A 6V SMT PolySwitch Fuse Tyco/Raychem MINISMDC260-2

Manufacturer: Tyco / Raychem
Part Number: MINISMDC260-2
Amps: 2.6
Voltage: 6
Watts: .6
Ohms: .043
Mounting: Surface Mount
Number Leads/Terminals: 2
Color: Green
Obsolete: Yes
Shape: Rectangle
Termination Method: Solder

Price: $0.60
1500 available for immediate delivery
Code: IC874APP08
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.60
10-99$0.50
100+$0.30

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Surface Mount Resettable PolySwitch Fuses
Obsolete
Size: 4532 (1812)

Features:
- Small Size
- Compatible with High-Volume Electronics Assembly
- Fast time-to-Trip
- Low Resistance

Maximum Electrical Ratings
Voltage: 6.0V
Short Circuit Current: 100A

Electrical Characteristics @ 20 deg. C:
IH: 2.6A
IT: 5.0A
Vmax: 6.0V
Imax: 40A
PD typ.: 0.6W
Max Time-to-Trip: 8.0A / 15sec
Rmin: 0.015Ω
Rtyp: 0.035Ω
Rmax: 0.470Ω

Max Dimensions:
Length: 4.73mm (0.186")
Width: 3.41mm (0.134")
Thickness: 1.25mm (0.050")

Manufactured by: Tyco / Raychem
Part Number: MINISMDC260-2

Full Datasheet: Raychem 2.6A 6.0V Resettable PTC Devices PolySwitches
